Wobble compact pump SF

Wobble compact pump SF

Description

Single-screw wobble pumps with Inverter and with or withour remote control.

They are designed to handle liquids of all viscosities.

Due to the simple construction wobble pumps are cost effective and easy to handle.

Pressure: up to 4 bar | 60 PSI



Advantages and Characteristics:

  • Body-pump and rotor in stainless steel AISI 304
  • Alimentary NBR rubber
  • Mechanical seal
  • Service-friendly and economical due to simple pump construction
  • Rapid exchange of conveying elements due to rotating unit with only one joint
  • Space-saving due to short, compact design with directly flanged drive (block design)

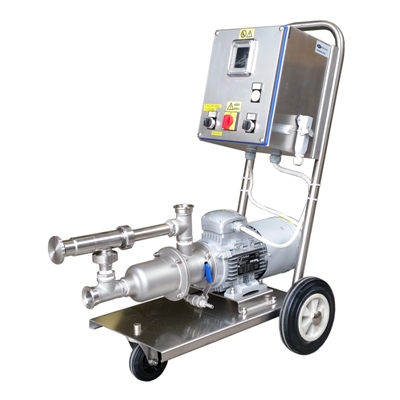

SF 25 400x400SF-25



  SF 25 SF 40
r.p.m. 140 ÷ 1400 140 ÷ 1400
Flowrate 220 ÷ 2200 Lt/h 530 ÷ 5300 Lt/h
Pressure Max 4 Bar Max 4 Bar
Fittings 1" GAS 1" 1/2 GAS

Dimensions

400x780x740 mm 420x780x800 mm
Weight Kg 18 Kg 28
Motor  Kw 0,55 Kw 1,1
