Vertical presses TIO

Vertical presses TIO

Description

Tico is a hydraulic vertical press with the following advantages:

  • a single piston-stroke brings considerable time saving;
  • inclined frame for easy loading;
  • no more central screw and wooden elements;
  • easy movement thanks to wheels.

It's available in manual or motorized versions, with wooden cage, pressing plate and basin painted, or with cage, pressing plate and basin in stainless steel AISI 304.



                  TICO MANUALE 400x400

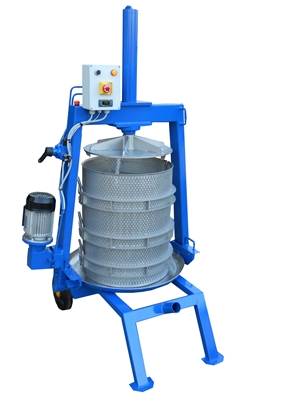

TICO MOTORE 400x400

  TIO 40 TIO 50 TIO 60 TIO 70
Pressure

manual 350 BAR

motor 300 BAR

manual 350 BAR

motor 300 BAR

manual 350 BAR

motor 300 BAR

manual 350 BAR

motor 300 BAR

Piston stroke
400 mm 500 mm 600 mm 650 mm
Ø Stroke 50 mm 70 mm 90 mm 110 mm
Cage capacity
69 Lt 128 Lt 212 Lt 327 Lt
Cage Dimensions
Ø400x550 mm Ø500x650 mm Ø600x750 mm Ø700x850 mm
Dimensions 800x800x1650 mm 950x950x1900 mm 1100x1100x2150 mm 1250x1250x2400 mm
Weight 130 Kg 200 Kg 280 Kg 380 Kg
