Sheet filter 20x20 FZ

Sheet filter 20x20 FZ

Description

Made in stainless steel AISI 304 (or in painted steel for FZ 8 and FZ 14 versions), practical, safe, guarantees also the small producer the quality and safety of high level product filtration. With 20x20 plates of non-toxic polyethylene (on request NORYL sterilizable at 120°C), pressure gauge for pressure control and flow regulation valve.

Available with double filtration kit and/or bypass (only for FZ 20 and FZ 30)

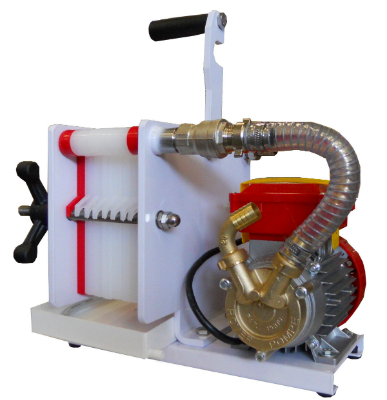

F8 VERNICE 400x400

Filter FZ 8 with painted frame and bronze pump

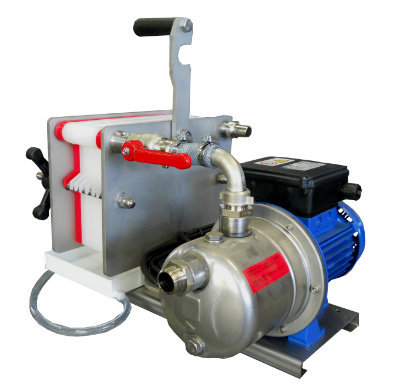

F8 INOX PE 400x400

Filter F8 with stainless steel frame and pump

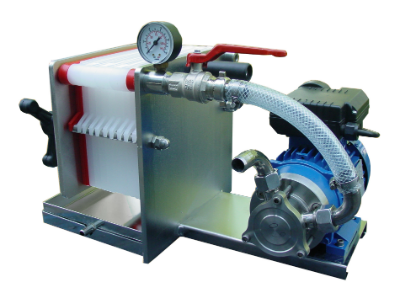

F10 Z12 400x400

 Filter FZ 10 with stainless steel frame and pump T12 / T25

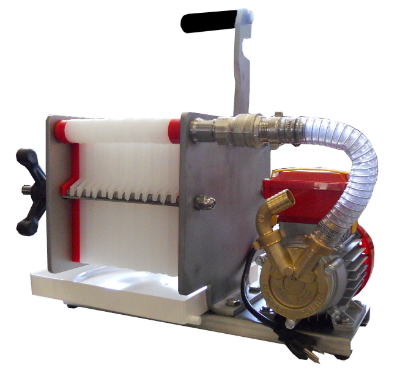

F14 INOX 400x400

Filter FZ 14 with stainless steel frame and bronze pump

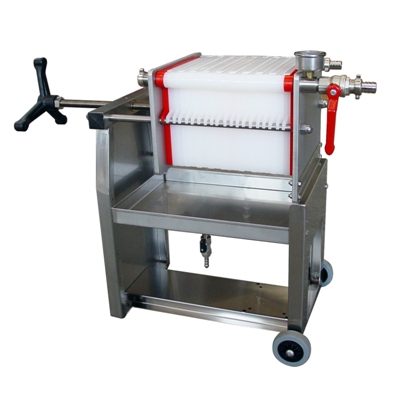

FZ20 s pompa 400x400

Filter FZ 20 - 30, model without pump

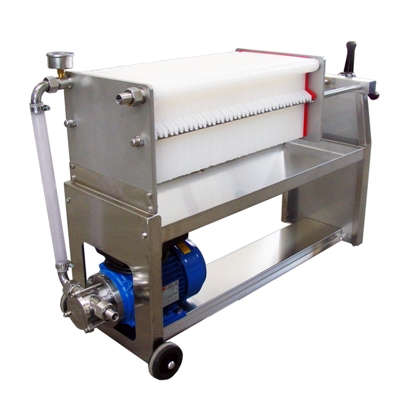

FZ40 400x400

Filter FZ 40 with  Tifone T-25, senza bypass



  FZ8 FZ10 FZ14 FZ20 FZ30 FZ40
N. sheets 8 10 14 20 30 40
Sheets dimensions 200x200 mm 200x200 mm 200x200 mm 200x200 mm 200x200 mm 200x200 mm
Filtrating surface
0,32 m2 0,4 m2 0,56 m2 0,8m2 1,2 m2 1,6 m2
Hourly output
200 ÷ 500 Lt/H 300 ÷ 700 Lt/H 500 ÷ 900 Lt/H 700 ÷ 1400 Lt/H 1400 ÷ 2000 Lt/H 1900 ÷ 2800 Lt/H
Dimensions 390X310X340 mm 500X500X650 mm 470X310X340 mm 500X700X650 mm 500X850X650 mm 500X1000x650 mm
Weight Kg 19 Kg 23 Kg 21 Kg 36 Kg 47 Kg 58



ico pdfDownload PDF




STRATI FILTRANTI CKP 200X200

  Type

g/m2

width

mm

flow

Lt/H al m2

Ø medio pori

micron

CKP V0 Coarse for Kieselgur 950 3,4 3000 20,0 ÷ 18,0
CKP V4 For coarse filtering 1000 3,4 2300 11,5 ÷ 9,5
CKP V8 For coarse filtering 1100 3,4 1500 7,0 ÷ 5,5
CKP V12 For medium polishing 1200 3,4 1100 4,8 ÷ 3,5
CKP V16 For polishing 1250 3,4 750 3,0 ÷ 2,5
CKP V20 For medium sterilizing 1350 3,4 320 1,0 ÷ 0,5
CKP V24 For sterilizing in critical conditions 1400 3,4 220 0,6 ÷ 0,3
