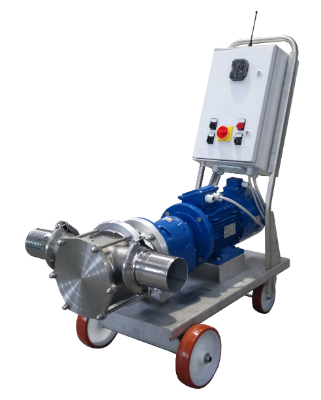

Pump T800
Description
Oenological racking pump for wine, must and foodstuffs.
The flexible impeller is made in certificated food grade rubber.
Suction is ambivalent in both rotating directions and the unbroken flow avoids shaking the transferred juices.
The pump is complete with Bypass and connectors.
NOVELTY 2014: MECHANICAL SEAL AND CAST IRON GEARBOX

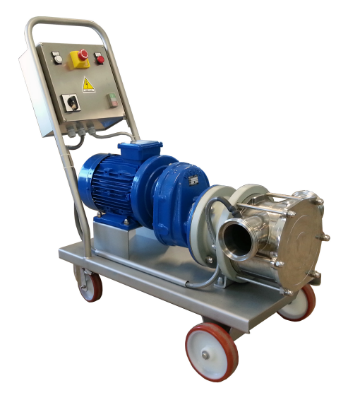

T800 A2V a 2 speed
T800 ICDR Frequency drive controller (Inverter)
T800 2V | T800 ICDR | |
r.p.m. |
|
20÷750 |
Flowrate HL/hour |
|
35÷630 |
Pressure max | 3 bar | 3 bar |
Fittings | Ø 100 | Ø 100 |
Dimensions mm |
550x1100x1200 | 550x1100x1200 |
Weight | Kg 150 | Kg 150 |
Motor | 3 ph - Kw 4,8 | 3 ph - Kw 7,5 |
