Pump T70

Description

Suited for decanting wine and alimentary liquids, it is particulary fit for filling demijohns and containers in general.

Suction is possible in both directions.

The rubber impellers prevent the shaking of the decanted liquids.

It works at low r.p.m., the flow is steady and quite gentle and according to its principle of working this pump can be called a "rotary piston pump".

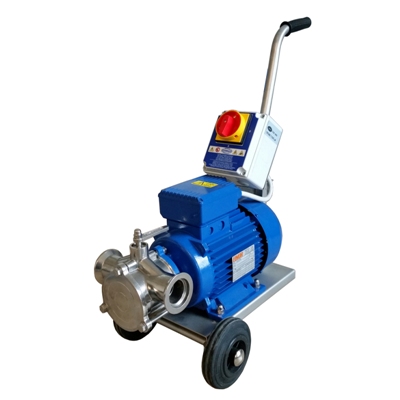

Tifone T 70 FL 400x400 T70 FL Flangiata

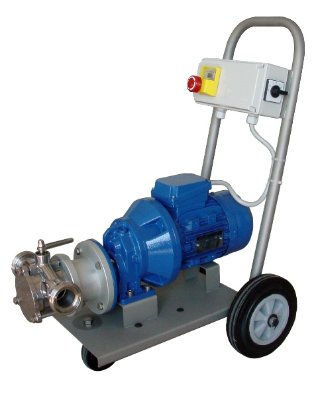

T-70-A2V 400x400 T70 2V A 2 speed

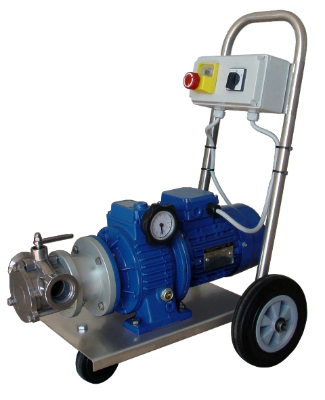

T-70VM155 400x400 T70 VM mechanical speed variator

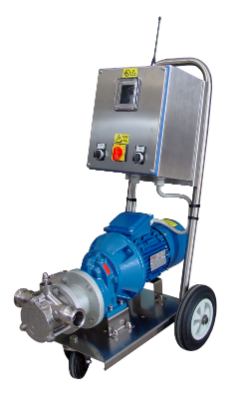

T-70ICDR 400x400 T70 ICDR frequency drive controller





  T70 FL T70 2V T70 VM0 T70 VM155 T70 ICDR
r.p.m. 900 I 380 - II 760 0÷900 155÷1000 32÷750
Flowrate 63 hl/hour 63 hl/hour 0÷85 hl/hour 12÷85 hl/hour 3,5÷63 hl/hour
Pressure 3,5 bar 3,5 bar 3,5 bar 3,5 bar 3,5 bar
Fittings Ø 40 Ø 40 Ø 40 Ø 40 Ø 40
Dimensions 370x660x620 mm
400x880x740 mm
400x880x740 mm
400x880x740 mm
400x880x740 mm
Weight Kg 20 Kg 37 Kg 53 Kg 45 Kg 41
Motor 3 ph - Kw 0,9 3 ph - Kw 0,8 3 ph - Kw 1,1 3 ph - Kw 1,1 3 ph - Kw 1,1
1 ph - Kw 0,9 - 1 ph - Kw 1,5 1 ph - Kw 1,5 1 ph - Kw 1,1

ico pdfDownload PDF mod.FL

ico pdfDownload PDF mod.A2V

ico pdfDownload PDF mod.VM

ico pdfDownload PDF mod.ICDR
