Mohno pumps with loading hopper PM

Mohno pumps with loading hopper PM

Description

The PM series of single-screw pumps is entirely made of AISI 304 steel : they are suitable for the conveyance of entire, destemmed and pressed grapes,fermented grape-dregs, must as well as various foodstuffs.

The screw which is placed in the loading hopper conveys the product inside the tator, where the helical rotor pushes it into the outgoing pipes. The PM pumps, through this mechanism, manage to develop considerablepressures ( aprox. 6 BAR ).

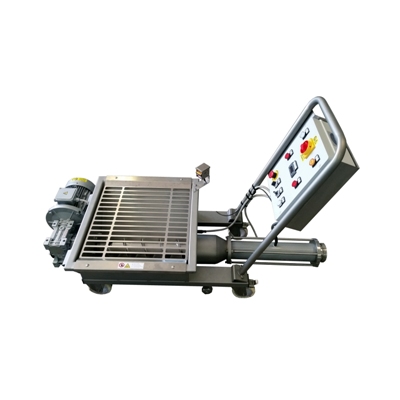

PM7 400x400PM 7

PM7 400x400PM 7 with laser sensor

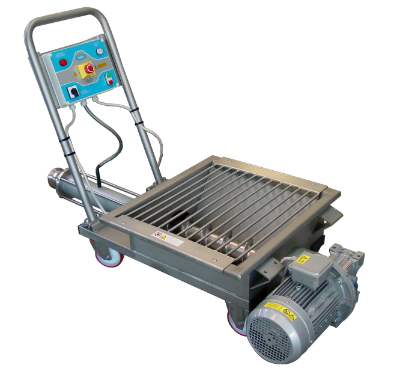

PM30 400x400PM 30



  PM 7 PM 12 PM 22 PM 30
r.p.m. 200 200 200 200
Flowrate 7 Ton/h 12 Ton/h 22 Ton/h 30 Ton/h
Fittings Ø 80 Ø 100 Ø 120 Ø 120

Hopper dimensions

680x620 mm 890x730 mm 890x800 mm 930x830
Weight Kg 115 Kg 145 Kg 190 Kg 220
Motor  Kw 3 Kw 4 Kw 5,5 Kw 7,5
