Horizontal pneumatic press Pn-Zeta
Description
The Pneumatic Presses "PnZeta" are entirely built in AISI 304 stainless steel. Any high quality components that we use (e.g. Becker compressors, Bonfiglioli reduction units etc.) are standard, and are pivoting, braking wheels.
Through a soft and gentle pressing of the membrane, our pneumatic presses PN ZETA play an important role in the production of top quality wines. They can press grapes in bunches, destemmed and fermented grapes and raisins at a very high hourly output.
Their loading can take place through one or several doors or through a axial loading. The press tanks are entirely closed, thus limiting the oxidation of the product and guaranteeing a very high quality of the must. The flow of the must takes place through inner drains and through the perforated loading door.
The new control board of the press is equipped with a PLC which is pre-programmed with 6 work cycles and 3 customizable cycles ; their run duration can be customized and all working processes can also be manually controlled.
There is also the possibility to mount watertight doors for carbonic maceration.
On request can be supplied the machine with perforated tank.
CUSTOMIZATION AVAILABLE ON REQUEST:
- Open cylinder, wthout draining channels
- Small drip tray mounted on machine frame
- Frame can be manufacture higher for unloading on bins or conveyors
- Electric float on drip tray with possibility to connect impeller transfer pump
PRESSING MEMBRANE MADE OF FOODGRADE PVC

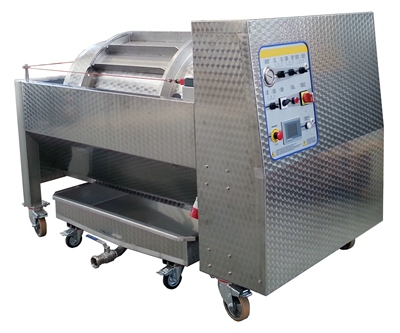

Pn Zeta HL6 standard model
Pn Zeta HL 32 standard model

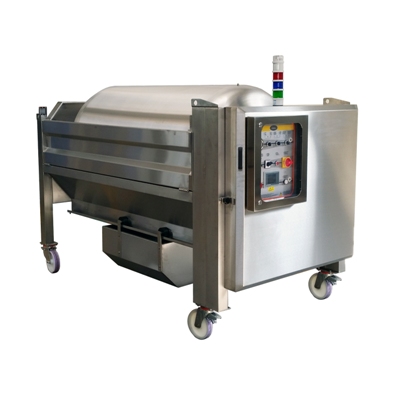

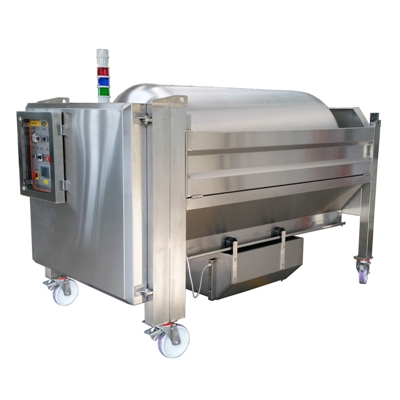

Versione "TOP" (model HL14)
Versione "TOP" (model HL14)

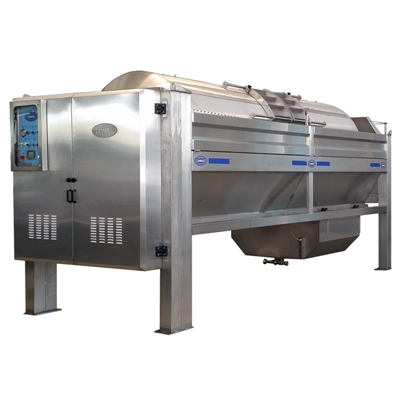

Versione "TOP" (model HL 80)
Versione "TOP" (model HL 80)
| Capacity of loading whole grapes | Capacity of loading destemmed grapes |
Capacity of loading fermented grapes |

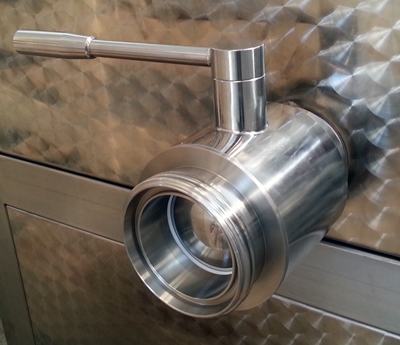

Ø axial loading valve |
Door dimension |
Dimensions |
Peso |
|
| PnZeta 6 | 450 Kg | 800÷900 Kg | 900÷1000 Kg | 80 mm | 600x470 mm | 2000x1100x1350 mm | 365 Kg |
| PnZeta 10 | 800 Kg | 1500÷1600 Kg | 1600÷1700 Kg | 80 mm | 700x470 mm | 2500x12000x1440 mm | 520 Kg |
| PnZeta 14 | 1000 Kg | 2100÷2200 Kg | 2200÷2300 Kg | 80 mm | 700x470 mm | 2650x1300x1540 mm | 470 Kg |
| PnZeta 17 | 1200 Kg | 2600÷2700 Kg | 2700÷2800 Kg | 100 mm | 700x470 mm | 2750x1500x1600 mm | 730 Kg |
| PnZeta 22 | 1600 Kg | 3300÷3400 Kg | 3500÷3600 Kg | 100 mm | n. 2 500x470 mm | 3200x1500x1650 mm | 805 Kg |
| PnZeta 27 | 2000 Kg | 4200÷4300 Kg | 4400÷4500 Kg | 100 mm | n. 2 500x470 mm | 3250x1600x1770 mm | 988 Kg |
| PnZeta 32 | 2200 Kg | 4800÷4900 Kg | 5200÷5500 Kg | 100 mm | n. 2 600x470 mm | 3750x1600x1800 mm | 1530 Kg |
| PnZeta 50 | 3500 Kg | 7500÷8000 Kg | 8200÷9000 Kg | 100 mm | n. 2 700x470 mm | 4400x1800x2250 mm | 1880 Kg |
| PnZeta 80 |
5600 Kg | 12500÷13000 Kg | 13500÷14000 Kg | 100 mm | n. 2 700x470 mm | 5500x1950x2400 mm | 3000 Kg |
| PnZeta 100 | coming | soon |
You can customize our presses depending on your needs, are also available, on request, presses with higher capacity.
