Grapes receiving hopper

Description

AISI304 stainless steel grape receiving hoppers.

Available in different sizes according to the customer's needs with 3 to 30 ton variable capacities.
Grapes are conveyed with one or two screws (according to required capacity) with diameter 300, 400 or 500 mm. according to need. All our hoppers come with a solid tubular frame to ensure adequate resistance to grape impact during the truck unloading phase.

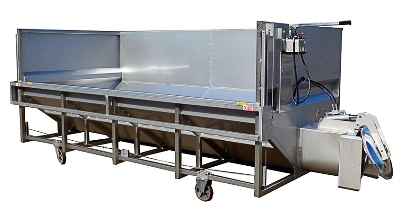

Tramoggia 400x400

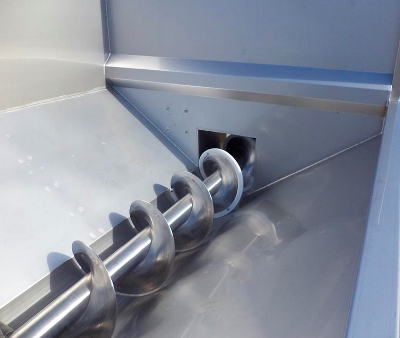

Dettaglio Tram 400x400

Detail of hopper

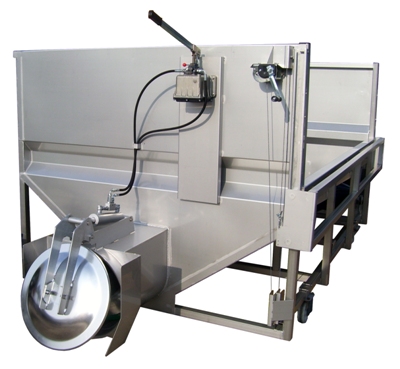

Tramoggia1 400x400





 CHARACTERISTICS



  Lunghezza (mm) Larghezza (mm) H. lato scarico (mm) H lato opposto (mm) Lamiera AISI304 sp. Tubo telaio AISI304 Tubo spirale (mm.) Diametro spirale (mm.) Diametro chiusino (mm.) Moto riduttore variatore Giri coclea (g./min)
VASCA TIPO "A"
4000 2450 1000 2060 2,0 mm. 50x50 ø 114 ø 400 ø 500 4,0 Hp. 3,5 - 18
5000 2450 1000 2060 2,0 mm. 50x50 ø 114 ø 400 ø 500 4,0 Hp. 3,5 - 18
6000 2450 1000 2060 2,0 mm. 50x50 ø 114 ø 400 ø 500 5,5 Hp. 3,5 - 18
7000 2450 1000 2060 2,0 mm. 50x50 ø 114 ø 400 ø 500 6,5 Hp. 3,5 - 18

VASCA TIPO "B" 3000 2000 900 1650 2,0 mm. 50x50 ø 114 ø 400 ø 500 4,0 Hp. 3,5 - 18
4000 2000 900 1650 2,0 mm. 50x50 ø 114 ø 400 ø 500 4,0 Hp. 3,5 - 18
5000 2000 900 1650 2,0 mm. 50x50 ø 114 ø 400 ø 500 4,0 Hp. 3,5 - 18
6000 2000 900 1650 2,0 mm. 50x50 ø 114 ø 400 ø 500 4,0 Hp. 3,5 - 18
