Destemmers

Destemmers

Description

GAMMA 15 - 25 - 40

With the range Gamma, we are sure that this semicentrifugal destemmer is the simplest and most convenient as far as working, maintenance, durability and it is the most productive of its kind.

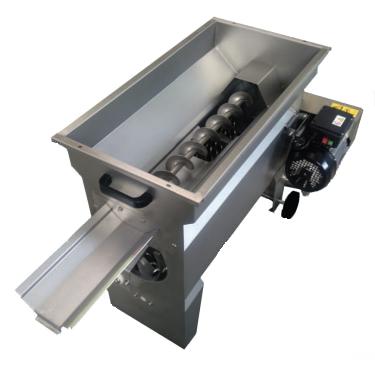

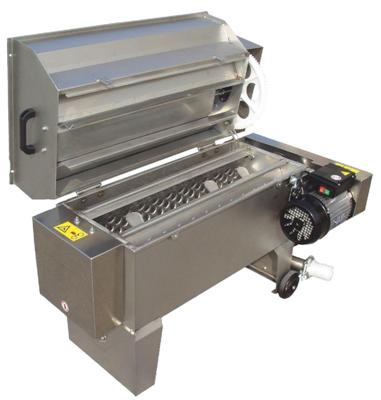

No tramissionn chains. Easy to clean by means of a hinge - opening: there is no need to remove belts or chains. Easy to move thanks to wheels.

The models GAMMA 15 and 25 are available in painted steel or stainless steel AISI 304, while GAMMA 40 is available only in stainless steel AISI 304.

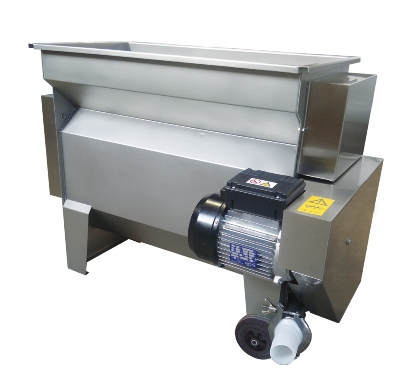

 Diraspatrice GAMMA 15

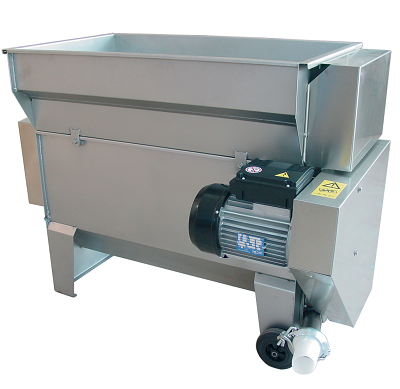

Destemmer GAMMA 25 - 40



  Gamma 15 Gamma 25 Gamma 40
Production 1,5-1,8 Ton/h 2,5-3 Ton/h 3,5-4 Ton/h
Motor Kw 1,1 Kw 1,5 Kw 1,85
Hopper 850x450 mm 910x535 mm 1020x580 mm
Dimensions 1080x600x770 mm 1150x680x850 mm 1250x700x900 mm
Weight Kg 70 Kg 90 Kg 100

ico pdfDownload PDF








ZETA 50

With the centrifugal destemmer Zeta 50, we wanted to create a high quality model, which has allowed us to expand our range of products.
It is entirely made in stainless steel AISI 304 and equipped with a wide loading hopper with feeding screw, rotating drum and stainless steel pump. The destemmer shaft of the machine, rotates at 500 rpm/min at the 1st speed and at 650 rpm/min at the 2nd speed.

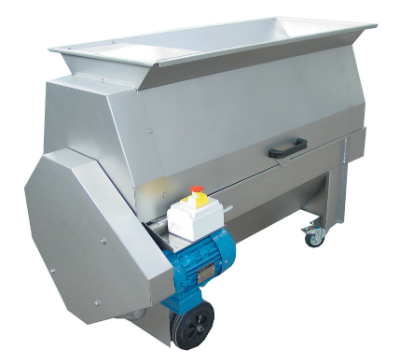

Garganega



Easy to clean by means of a hinge - opening: there is no need to remove belts or chain.

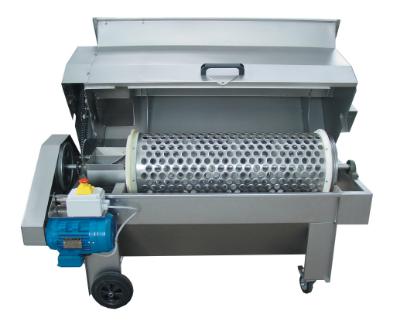

Garganega aperta



  Zeta 50
Production 5-6 Ton/h
Motor Kw 1,85
Hopper 1300x580 mm
Dimensioni 1500x800x1070 mm
Peso Kg 150

ico pdfDownload PDF
