Destemmer-Crushers

Description

NEWS 2016 !

EMME 60 SPECIAL

The destemmer-crusher Emme 60 is entirely made of stainless steel AISI 304.

The speed variator allows optimization of destemming with different types of grapes. A second speed variator helps to regulate the speed of the loading auger.

Possibility of recovering the first juice.

Rapid disassembly of drum and destemmer shaft for easier and more accurate cleaning of the machine.

The legs are adjustable in height. Removable stemmer with adjustable rubber paddles.

The pressing unit is provided with adjustable rubber rollers. It slides and may be used or excluded if you want to eliminate the pressing phase.

Optional:

  • internal washing system
  • collection tank VR
  • inverter

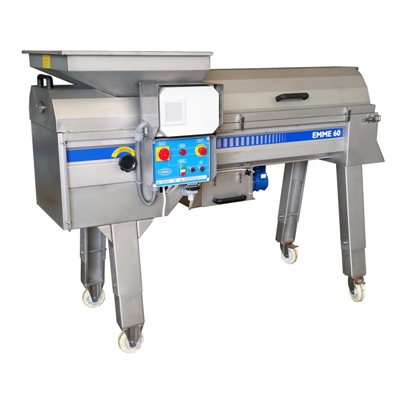

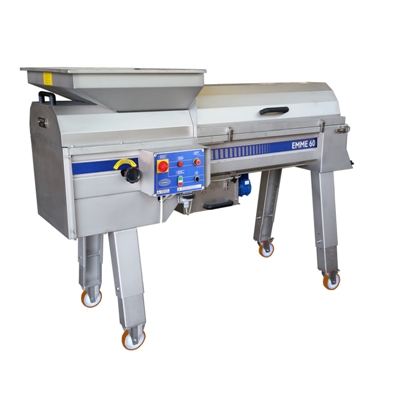

Emme 60 400x400Raised model

Emme 60 400x400Emme 60 Inverter

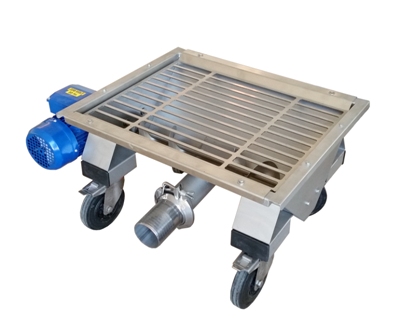

VR50 400x400Must collecting tank with geared motor VR



  EMME 60 SPECIAL
CRUSHING UNIT RU60 MUST COLLECTING VR
Production 6-8 Ton/h - -
Motor Kw 2,35 Kw 0,55 Kw 0,55
Hopper 800x690 mm - 800x740 mm
DimensionS 1945x830x1220/1590 mm 560X400X190 mm 800x980x370 mm
wEIGHT Kg 240 Kg 35 Kg 35

 ico pdfDownload PDF




NEW FOR 2016 !

EMME 120 SPECIAL

The destemmer-crusher Emme 120 is entirely made of stainless steel AISI 304.

The speed variator allows optimization of destemming with different types of grapes. A second speed variator helps to regulate the speed of the loading auger.

Possibility of recovering the first juice.

Rapid disassembly of drum and destemmer shaft for easier and more accurate cleaning of the machine.

The legs are adjustable in height. Removable stemmer with adjustable rubber paddles.

The pressing unit is provided with adjustable rubber rollers. It slides and may be used or excluded if you want to eliminate the pressing phase.

Optional:

  • internal washing system
  • collection tank VR
  • inverter

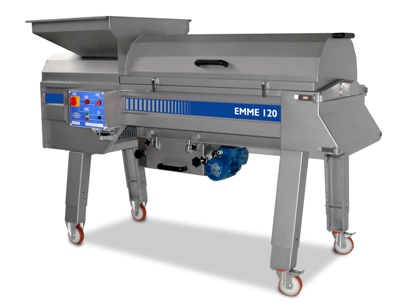

Emme 120

Emme 120 lato



  EMME 120
GRUPPO PIGIANTE RU80 VASCA VR
Produzione 12-14 Ton/h - -
Motore Kw 2,35 Kw 0,55 Kw 0,55
Tramoggia 800x690 mm - 800x740 mm
Dimensioni 2000x930x1230 mm 560X400X190 mm 800x980x370 mm
Peso Kg 200 Kg 35 Kg 35

ico pdfDownload PDF




NEW FOR 2016 !

EMME 200 SPECIAL

The destemmer-crusher Emme 120 is entirely made of stainless steel AISI 304.

The speed variator allows optimization of destemming with different types of grapes. A second speed variator helps to regulate the speed of the loading auger.

Possibility of recovering the first juice.

Rapid disassembly of drum and destemmer shaft for easier and more accurate cleaning of the machine.

The legs are adjustable in height. Removable stemmer with adjustable rubber paddles.

The pressing unit is provided with adjustable rubber rollers. It slides and may be used or excluded if you want to eliminate the pressing phase.

Optional:

  • internal washing system
  • collection tank VR
  • inverter

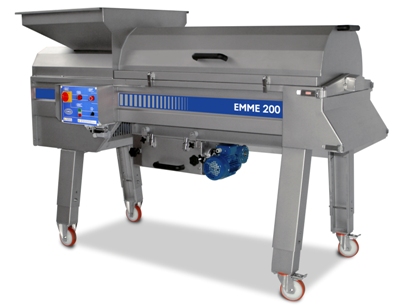

EMME 200 2015 400x400

  EMME 200
CRUSHING UNIT     RU200 VASCA VR
Production 22-24 Ton/h - -
Motor Kw 5 Kw 0,55 Kw 0,55
Hopper 1000x890 mm - 800x740 mm
Dimensions 2200x980x1430 mm 800X500X220 mm 800x980x370 mm
Weight Kg 240 Kg 35 Kg 35



ico pdfDownload PDF      Video icon Watch video




NEW FOR 2016 !

  EFFE 50

The destemmer-crusher Effe 50 is entirely made of stainless steel AISI 304.

This machine is made up of a big loading hopper with feeder auger, a rotation drum and a crushing unit with rubber rollers.

A mechanical joint is used to unhook the crushing unit (RF) quickly whenever the crushing phase is not needed.

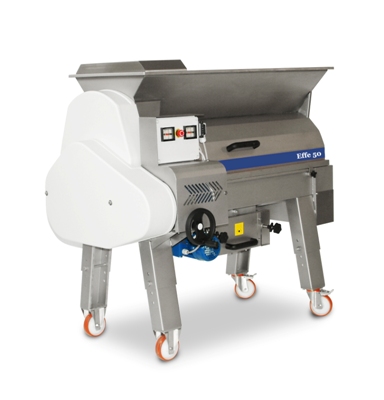

Effe 50 400x400         Effe 50 Vista Alto 400x400

VR50 400x400Must collecting tank VRF

  EFFE 50 CRUSHING UNIT RF MUST COLLECTING TANK VRF
Production 4-5 Ton/h - -
Motor Kw 1,85 - Kw 0,55
Hopper 1300x580 mm - 600x470 mm
Dimensions 1500x800x1300 mm 560X400X190 mm 800x850x400 mm
Weight Kg 160 Kg 18 Kg 31

  ico pdfDownload PDF


GAMMA 30

The destemmer-crusher Gamma 30 is entirely made of stainless steel AISI 304.

Complete with must collection tank and central exit, fix stainless steel grill. Very easy to clean by means of a hine-opening: there is no need to remove belts or chains. Without pump. With adjustable rubber rollers.

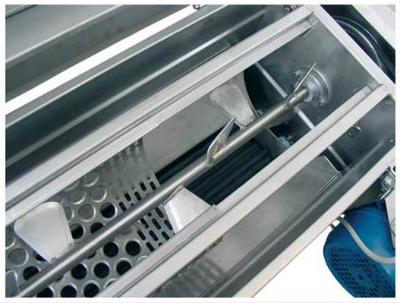

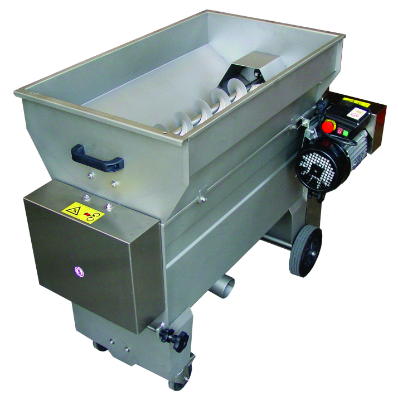

 Vernaccia 400x400          VERNACCIA INTERNO 400x400Dettaglio rulli

  GAMMA 30
Production 2,5-3 Ton/h
Motor Kw 1,5
Hopper 900x540 mm
Dimensions 1150x680x850 mm
Weight Kg 90

ico pdfDownload PDF      Video icon Watch video
