Crusher-destemmer

Description

Our crusher-destemmers have a modern and simple design. Their structure has been studied carefully in order to ensure a high productivity besides a simple and effective working.

Versions available:

  • MOLINARA: manual, available in painted steel or stainless steel AISI 304, with hopper chute.
  • RONDINELLA: motorized, available in painted steel or stainless steel AISI 304, hopper with feeding screw for the automatic advancement of the grape.
  • CORVINA: motorized, available in painted steel or stainless steel AISI 304, hopper with feeding screw for the automatic advancement of the grape. Star-shaped rollers in alimentary rubber series.
  • ROSSIGNOLA: motorized, available in painted steel or stainless steel AISI 304, hopper with feeding screw for the automatic advancement of the grape and must collecting tank with inox centrifugal pump. Star-shaped rollers in alimentary rubber series.

For all models, stainless steel grate, extractable for quick cleaning.

Optional for Molinara e Rondinella:

  • star-shaped rollers in alimentary rubber
  • stand with stainless steel chute



a24manuale 400Cantinetta painted steel manual



a26 inox 400Cantinetta C.d.A.stainless steel manual

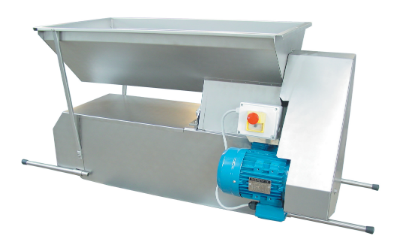

BETA 400x400Beta 35

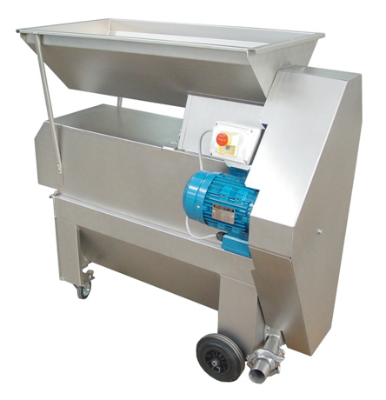

DELTA 400x400Delta 35



  CANTINETTA CANTINETTA C.D.A. BETA 35
DELTA 35
Production 1,8 Ton/h 2,2 Ton/h 3,5-4 Ton/h 3,5-4 Ton/h
Functioning manual motore Kw 0,55 motore Kw 1,1 motore Kw 1,5
Rollers Ø 95 - L. 220 mm Ø 95 - L. 220 mm Ø 150 - L. 300 mm Ø 150 - L. 300 mm
Hopper 760x460 mm 900x460 mm 1030x550 mm 1030x550 mm
Dimensions 1150x460x580 mm 1100x550x580 mm 1300x660x710 mm 1300x660x1230 mm
Weight Kg 31 Kg 43 Kg 70 Kg 110
