Professional semi-automatic corkers

All models of corking machine are manufactured entirely in AISI 304 stainless steel; the corking head is equipped with four ground and lapped jaws. Synthetic or natural corks with Ø 22, 24, 26 may be used and, on request, the machines may also be equipped for corks Ø 28 (except for the model TPF). The cork is inserted rapidly, in about 2 seconds, to create less pressure on the neck of the bottle. The maximum height of cork to be used with our corkers is 50mm.

The models "TPA", "TM" e "TMV" are equipped with a hopper with mechanical agitator to allow continuous cork feed.

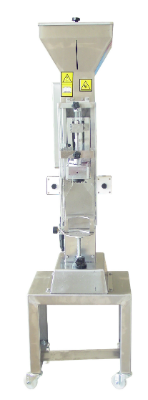

TPA

In the model "TPA" the cork is inserted via a corking pin operated by a pneumatic piston.

• AISI 304 stainless steel frame
• Stainless steel jaws
• Diameter of corks: 22-26mm
• On request diameter of corks up to 28mm
• Height of corks: up to 50mm
• Height of bottles: up to 375mm
• Corking time: about 3 seconds

PNEUMATIC STARTING
Air consumption ("forward/back" 4 bar): 9,8 Nl
Air consumption ("forward/back" 6 bar): 13,8 Nl

OPTIONAL
Stainless steel base BT

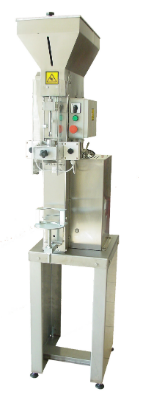

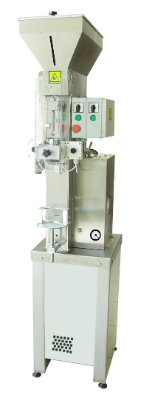

         TM                                                             TMV

 In the models "TM" and "TMV" the cork is inserted by a pin operated by a single-phase or three-phase 0.75 kW gear motor.

Unlike the model "TM", the model "TMV" has a device for vacuum corking or for introducing nitrogen.

• AISI 304 stainless steel frame
• Stainless steel jaws
• Automatic loading of the corks
• Diameter of corks: 22-26mm
• On request diameter of corks up to 28mm
• Height of corks: up to 50mm
• Height of bottles: up to 375mm
• Corking time: about 1,8 seconds

ELECTRIC STARTING
230 Volt, 50 Hz 1-phase motor or 380 Volt, 50 Hz 3-phase motor

OPTIONAL
Stainless steel base BTM, only for model TM
Inverter for 110 Volt, 60 Hz feeding

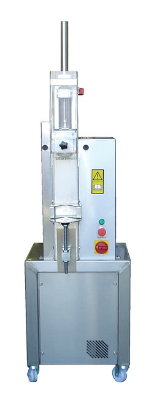

            TPF

Mechanic corker for mushroom and plain corks

• AISI 304 stainless steel frame
• Stainless steel jaws
• Manual loading of the corks
• Suitable for Champagne corks and straight natural cork stoppers
• Champagne corks: 31,5mm diameter and height up to 50mm
• Straight natural cork stoppers: 26-30mm diameter and height up to 50mm
• Height of bottles: up to 375mm
• Corking time: about 1,8 seconds

ELECTRIC STARTING
380 Volt, 50 Hz three-phase motor

OPTIONAL
Inverter for 230 Volt, 50/60 Hz mono-phase feeding
