Plate & Frame filter 40x40 CF

Plate & Frame filter 40x40 CF

Description

The FC filter is made entirely of stainless steel. It is mounted on wheels and provided with a drip collection tray. The filter unit is closed by centrally located stainless steels screws. The plates (400x400 mm) are made of Polypropylene for alimentary use or in Noryl, Moplen or stailes steel AISI 316. The filter is also provided with pressure gauges, valves and a sight gauge for the liquid.

Available with inversion plate, s.steel or impeller pump incorporated and also hydraulic manual/electric close.

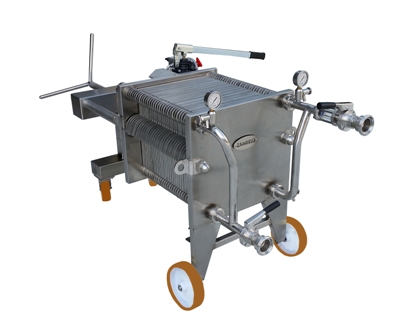

CF43id

CF 40x40 frame for 30 plates, with s.steel AISI 316 plates

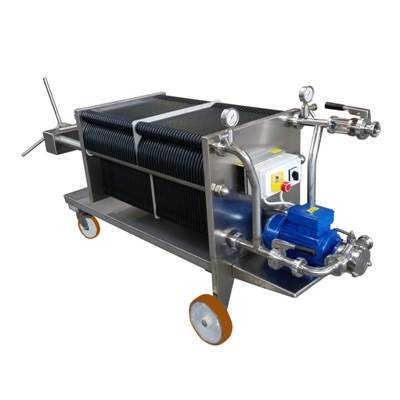

 CF45 T70 400x400

CF 40x40 frame for 60 plates, polypropylene plates and impeller pump T70

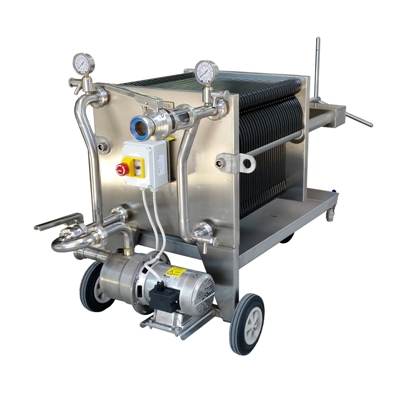

CF44 Pompa E 400x400

CF 40x40 frame for 30 plates with s.steel pump type E

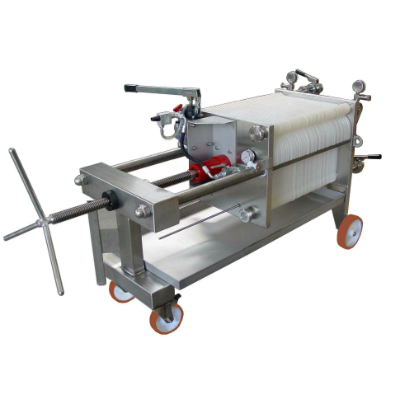

 40x40 chiusura idr

CF 40x40 frame for 40 plates, with polyethylene plates and manual hydraulic close





  CF42 CF43 CF44 CF45 CF46 CF48 CF410
Sheets nr.
20 30 40 50 60 80 100
Sheets dimension
400x400 mm 400x400 mm 400x400 mm 400x400 mm 400x400 mm 400x400 mm 400x400 mm
Filtrating surface
3,2 m2 4,8 m2 6,4 m2 8,0 m2 9,6 m2 12,8 m2 16 m2
Hourly production
2700 Lt/H 4000 Lt/H 5300 Lt/H 6500 Lt/H 8000 Lt/H 10700 Lt/H 13400 Lt/H
Dimensions 1550x700x950 mm 1750x700x950 mm 2050x700x950 mm 2150x700x950 mm 2300x700x950 mm 2800x700x950 mm
Weight Kg 217 Kg 255 Kg 280 Kg 315 Kg 350 Kg 430 Kg 460



ico pdfDownload PDF




STRATI FILTRANTI CKP 400X400



  Tipologia

Grammatura

g/m2

Spessore

mm

Flusso

Lt/H al m2

Ø medio pori

micron

CKP V0 Sgrossante: per farine fossili 950 3,4 3000 20,0 ÷ 18,0
CKP V4 Sgrossante: per filtrazioni sgrassanti 1000 3,4 2300 11,5 ÷ 9,5
CKP V8 Sgrossante: per filtrazioni sgrossanti 1100 3,4 1500 7,0 ÷ 5,5
CKP V12 Medio Brillantante: per filtrazioni medio brillantanti 1200 3,4 1100 4,8 ÷ 3,5
CKP V16 Brillantante: per filtrazioni brillantanti 1250 3,4 750 3,0 ÷ 2,5
CKP V20 Sterilizzante: per filtrazioni sterilizzanti 1350 3,4 320 1,0 ÷ 0,5
CKP V24 Sterilizzante Extra: per filtrazioni sterilizzanti in condizioni critiche 1400 3,4 220 0,6 ÷ 0,3
