Belt elevator

Belt elevator "EL"

Description

CONVEYOR SERIES "EL"

Ideal for the handling of whole grapes from bins (optional hopper available on request) and tables of selection. Available in different sizes and customizations on request.

Main features:

- Mechanical variable speed

- Width palette transport 300 or 500 mm

- Frame completely washable

- Chute drip with separate collection must, equipped with attack Garolla Ø50 No.1 and No.1 attack Garolla Ø100mm

- PVC belt non-toxic, food

- Loading hopper with H. 1000x520mm ground 680mm

- Dumping hopper

- Available in the "fixed" (height adjustable only in 3 positions) and the hydraulic version (height adjustable as shown in the tables)

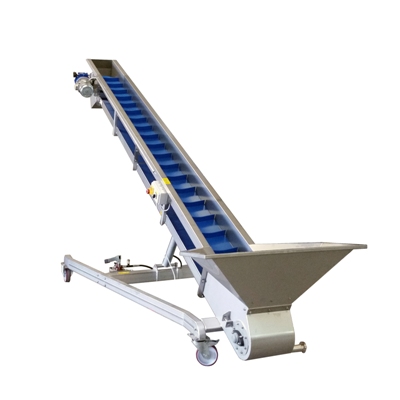

ELI 5000 400x400EL-I 5000





 Chart with features of Belt elevators "EL" (model with hydraulic jack)



ELI25S ELI30S ELI35S ELI40S ELI40S
Effective lenght
2500 mm 3000 mm 3500 mm 4000 mm 5000 mm
Paddle width 300 mm 300 mm 300 mm 300 mm 300 mm
Loading hopper size
520x1000 mm  520x1000 mm  520x1000 mm  520x1000 mm  520x1000 mm
Max. height loading hopper
900 mm 900 mm 900 mm 900 mm 900 mm
Mix. height loading hopper
680 mm 680 mm 680 mm 680 mm 680 mm
Discharge height
1110 -1650 mm 1330 -1990 mm 1550 - 2330 mm 1775 -2670 mm 2220 -3350 mm



ELI25M ELI30M ELI35M ELI40M ELI50M
Effective lenght 2500 mm 3000 mm 3500 mm 4000 mm 5000 mm
Larghezza palette 500 mm 500 mm 500 mm 500 mm 500 mm
Dimensione tramoggia di carico 520x1200 mm  520x1200 mm  520x1200 mm  520x1200 mm  520x1200 mm
Altezza massima tramoggia di carico 900 mm 900 mm 900 mm 900 mm 900 mm
Altezza minima tramoggia di carico 680 mm 680 mm 680 mm 680 mm 680 mm
Altezza di scarico 1110 -1650 mm 1330 -1990 mm 1550 - 2330 mm 1775 -2670 mm 2220 -3350 mm

The Belt elevators, "EL" are available in lengths up to 7500 mm (price on request)
